Ready Mixed Concrete Mixing Plant
Product Details:
- General Use Ready Mix Concrete Plant
- Material Stainless Steel
- Supply Ability : 5 Per Month
- Click to view more
Price And Quantity
- 1800000.00 - 2200000.00 INR/Unit
- 1 Unit
Product Specifications
- Ready Mix Concrete Plant
- Stainless Steel
Trade Information
- 5 Unit Per Month
- 25 Days
- As per requirement
- All India
Product Description

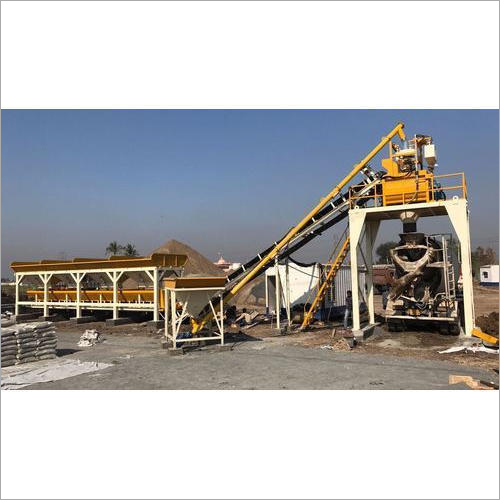

Provided Ready Mixed Concrete Mixing Plant is known for its high automation degree. Its output capacity is 30.This plant consists of mixer with 750 l mixing volume, 30 hp main motor, diesel fueled engine, 5 mm thick hopper, 4 bins, digital admixture dosing section and PLC control panel. It uses belt based material feeding conveyor. Aggregate weighing range of this Ready Mixed Concrete Mixing Plant is 2000 kg. Apart from these, offered plant also contains 100 KVA DG set, 30 silos, pan mixer, steel hopper and mild steel chassis.
Other Details:
- Type: Mix Concrete Plant
- Condition: New
- Feature: Low maintenance
- Usage: Industrial
Technical Specification
| Hopper Material Thickness (mm) | 5 |
| Automatic Grade | Automatic |
| Usage/Application | Civil Construction |
| Output Capacity | 30 |
| Brand/Make | Topcon Eng |
| Power Source | Diesel Engine |
| Model/Type | CP - 30 |
| Condition | New |
| Mixer Volume (Litres) | 750 L |
| Main Motor Power (hp) | 30 |
| No. of Bins | 4 |
| Material weighing system | Digital |
| Discharging Volume (Litre) | 750 |
| Admixture dozing system | Digital |
| Control Panel | PLC |
| Cement Feeding Conveyor System | Belt Conveyor |
| Speed of Mixing Drum | 20r/min |
| Material Feeding Conveyor System | Belt Conveyor |
| Aggregate Weighing Range (kg) | 2000 |
| Cement Weighing Range (kg) | 275 |
| Blades | 6 |
| Concrete Discharge height from ground level (m) | 3.8 |
| Total Connected Power ( HP ) | 85 |
| Suggested DG set (KVA) | 100 |
| Mixer Type | Pan Mixer |
| Material Of Bin/Silos | 30 |
| Overall Weight (kg) | 15 |
| Concrete Mixing Time (Sec) | 15 |
| Chassis Material | Mild Steel |
| Hopper Material | Steel |
