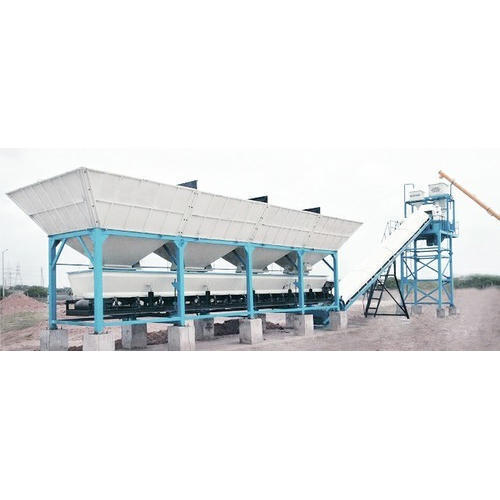

Concrete Cement Mixing Plant

Application

Building & Civil Construction

Brand/Make

Conmet

Automatic Grade

Automatic

Usage/Application

Building and Civil Construction

Output Capacity

38

Model/Type

RMC Plant

Brand

Topcon Engineering

Condition

New

Air Compressor Motor (Horsepower)

5

Mixer Volume (Litres)

750 L

Main Motor Power (hp)

30

Air Compressor (hp)

5 HP

Weight (Ton)

25

No. of Bins

4

Material weighing system

Digital

Control System Type

Fully Automatic Panel PLC Base

Design Type

RMC

Admixture dozing system

Digital

Drum Capacity (Litre)

750

Control Panel

PLC

Voltage (V)

415

Cement Feeding Conveyor System

Belt Conveyor

Material Feeding Conveyor System

Belt Conveyor

Aggregate Weighing Range (kg)

2000

Number Of Bins

4

Cement Weighing Range (kg)

275

Water Pump (hp)

2

Hopper Capacity (Litre)

350

Speed Of Mixing Drum (rpm)

23

Linear Plate

10

Suggested DG set (KVA)

100

Material Grade

1

Feeding Mode

AUTO

Number Of Phases

3

Weighing Range (kg)

2000

Material Of Bin/Silos

30

Frequency (Hz)

50

Concrete Mixing Time (Sec)

120

Cement Scale (kg)

350

Aggregate Storage Type

IN LINE BIN

Sand Vibrator

Yes

Voltage (Volt)

440

Aggregate Waiting Hopper On Mixer

Yes

Power Source

DG Set

Productivity Ratio (m Cube Per hour)

30m3

Color

ANY

Size

40 FEET

Material

Mild Steel,Steel

Aggregate Storage Facility

YES

Cement Feeding Motor

10 HP

Concrete Discharge Height

3.8

Discharge Height

3.8

Filling Percentage

100

Gates

4

Load Cells

4

Mixing System

Pan Mixer

No Of Aggregate Storage Bins

4

Operating Pressure Of Water

Auto

Output Cycle

0.5m3

Prime Mover

30 HP

Storage And Feeding Unit

Four Bin Feeder

Water Connection

50 MM

Water Feeding System

Load Cell

Is It Portable

Non Portable

Capacity

30 Cu.M/Hr

Additive Weighing System

Auto

Mixer Spacification

Pan Mixer

Output Per Batch

0.5m3

Total Connected Load

85
